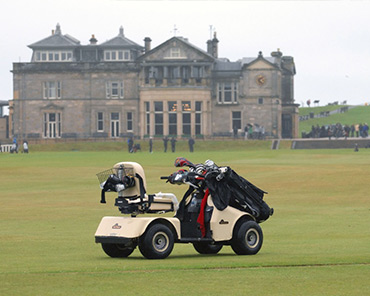

Solo Rider

Don't be left behind. Experience the smoothest ride in golf and continue to enjoy the game of a lifetime. To enable golfers to continue to enjoy the game of golf, the SoloRider difference is a golf car that you can:

Specs
Drive Motor 36-volt,shunt wound
Drive Unit 12.4:1 direct drive axle,
double reduction helical gear
Electrical System 36-volt DC
Batteries Industrial Deep cycle,
12-volt, 105 amp-hour
Charger Automatic, 20 amp
Controller 36-volt, 200 amp, 4 quadrant regenerative
Steering Hand-controlled (left, right, and both)
Suspension Coil springs over shocks
Suspension Coil springs over shocks
Brakes Individually activated
left/right hydraulic drum
Frame/Chassis Tubular steel with powder-coated finish
Body ABS/DR acrylic molded-in color
(White, Beige, or Green)
Front Tires 18x8.50-8, 4-ply rated, ribbed tread
Rear Tires 18x8.50-8, 4-ply rated, turf tread
Seating Capacity 1 person
Seat Lift Actuator 12" Length 36 DCV
Seat Lift Positions Infinite - User Defined
Seat Rotation Infinite - User Defined
Vehicle Load Capacity Up to 350 lbs. (136.1 kg)
Overall Dimensions (LxWxH) 84.0"x38.0"x44.0"
(213.4x96.5x111.8cm)
Wheelbase 53.5" (135.9cm)
Ground Clearance 7.0" (15.2cm)
Weight Without batteries: 498 lbs. (225.9 kg);
With batteries: 759lbs. (344.28 kg)
Forward Speed Up to 13.0 mph (20.9 kph)
Outside Clearance Circle 18' (5.5m)
Turning Radius 5'10" (177.8 cm)
Download Solo-Rider.pdf
